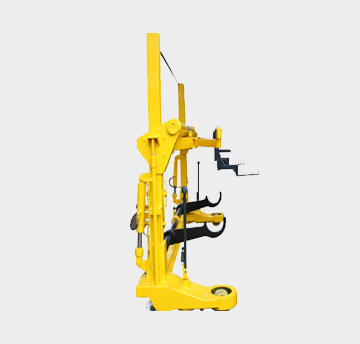

Beam Gaiting Trolley

Beam Gaiting Trolley

Beam Gaiting Trolley for transporting Beam with Heald Frames. Trolley with extra Arm suitable for 340 cm loom with lifting capacity of 1500 kg and can transport upto 1000 mm dia beam. Separate steering for push / pull at both sides. Wheels are with bearings and with thread protector caps. The stability of the truck is ensured by even weight distribution when the beam is loaded.

• Warp beam storage truck that can be coupled with semi and fully automatic drawing-in machines as well as for manual drawing-in.
• For full beams and twin beams
• Take-over of the drawn –in warp for mounting into the weaving machine by means of warp beam lift truck with harness mounting device
• Carrying capacity 3000 kg
• Warp beam take-up on bearing rollers at the warp beam flange
• Warp beam take-up is movable to accommodate different machine widths
• Detachable leg of central bearing for twin beams.
